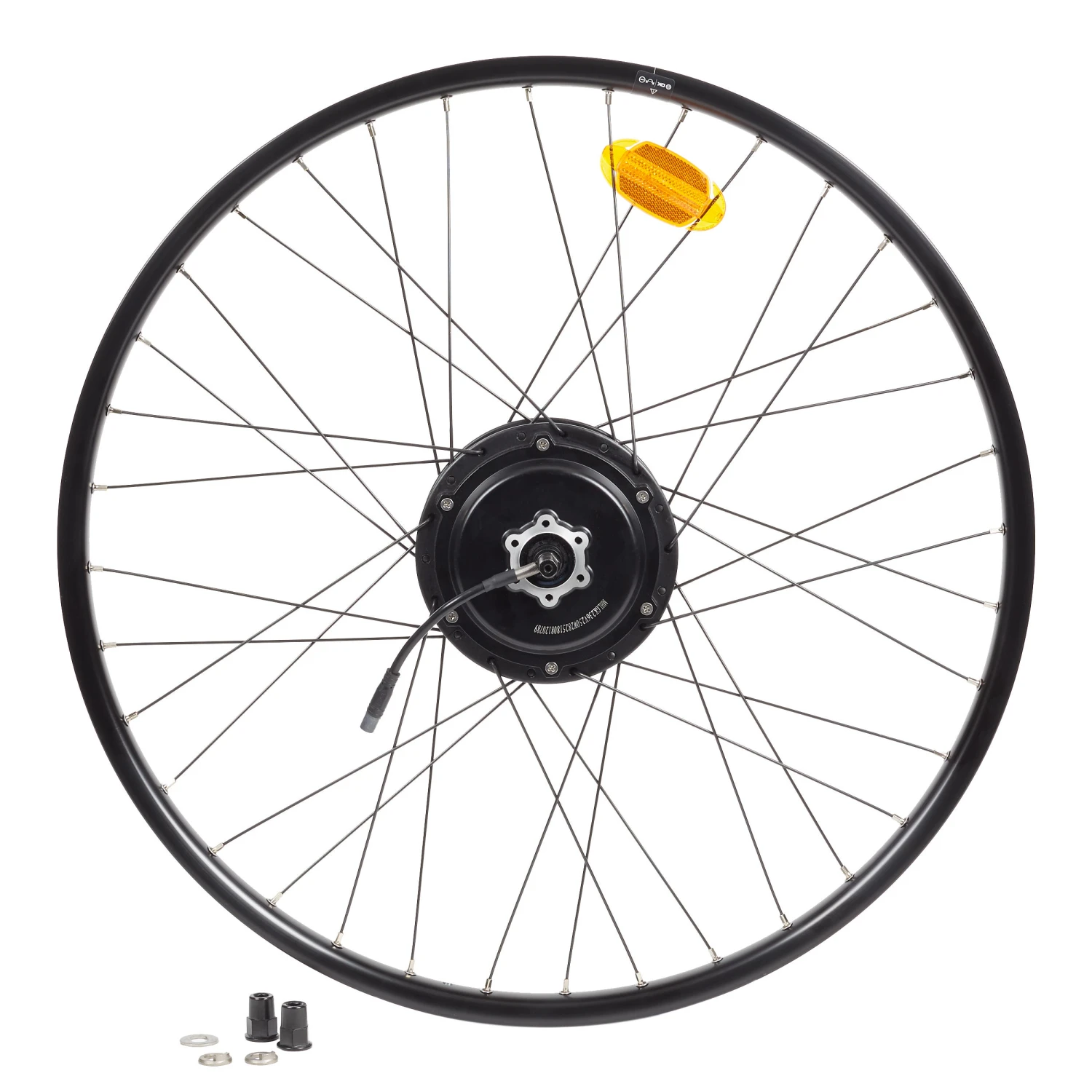

Rockrider 27.5″ E-ST 100 Cassette Disc Brake Motorised MTB Rear Wheel With Nut

Replacing the rear wheel on your E-ST 100Motorised wheel for the E-ST 100. Can be made tubeless by adding rim tape and valves.

Technical features

ETRTO diameter: 584x23c
Rim material: Aluminium 6063 / Black
Rim type: Sleeved
Double-walled
Valve hole diameter: 8.5 mm

Motor:
Torque: 42 Nm
Amps: 20A
Power: 350W
Voltage: 36V
Connection: 9-pin

Number of spokes: 36
Spoke material: Stainless steel / Black
Spoke shape: Double butted 2/1.7/2
Spoke pattern: 2-cross

Brake compatibility: 6-bolt disc

OLD: 150×10 mm
Type of bearing: Waterproof

Care tips

Regularly check there is no runout on your wheel, and the tension of your spokes
Avoid using any high pressure cleaning methods on the wheel bearings

Wheel assembly advice

Tighten to the recommended torque for this disc (6 Nm) and the cassette (40 Nm).
Remember to apply a small amount of thread-locking fluid to the disc’s screw threads.
Check that the connector pins are correctly aligned.
